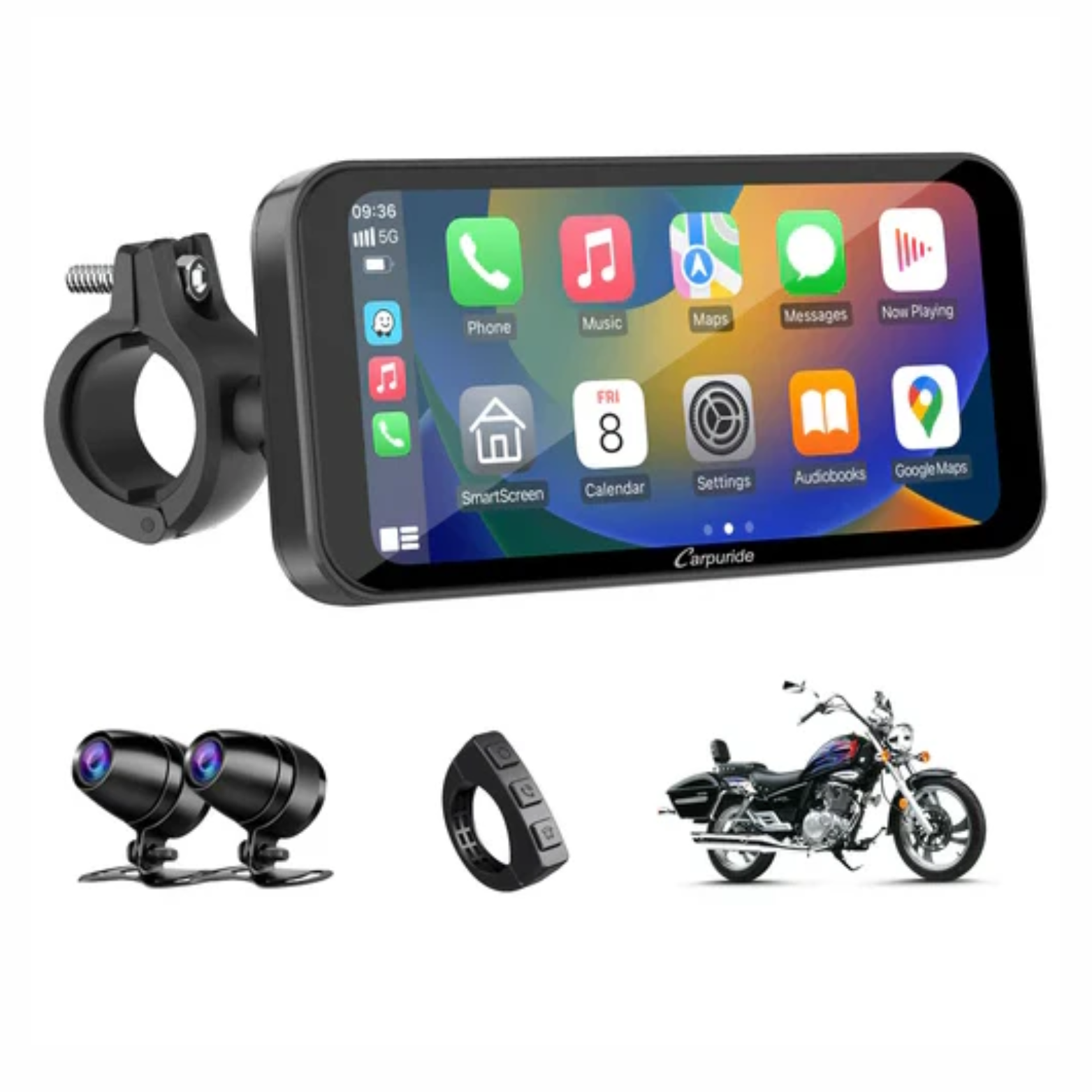

Carpuride W603D Wireless Motorcycle Stereo with HD Dual Cameras

Product Description:

• Carpuride W603D with TPMS Option | Wireless Portable Motorcycle Stereo with HD
• Dual HD Cameras: See Everything, Front & Rear

• Front & Rear 1080P Dash Cam + 90° Rotatable Screen + Wired Controller + IP67 Waterproof

Why Do Riders Choose W603D?

• Rotatable Screen: 90° rotation between landscape and portrait. Portrait mode shows more road ahead during navigation. Landscape for music and calls.
• Wired Controller: Handlebar-mounted button for safe operation. Switch screens, answer calls, and control cameras without taking hands off grips.
• Dual Dash Cam: Front and rear 1080P HD cameras with 140° wide-angle. Loop recording with 64GB TF card included. Capture every moment.
• Optional TPMS: Real-time tire pressure monitoring. Prevent blowouts. Includes 2 sensors (optional upgrade).

Features:

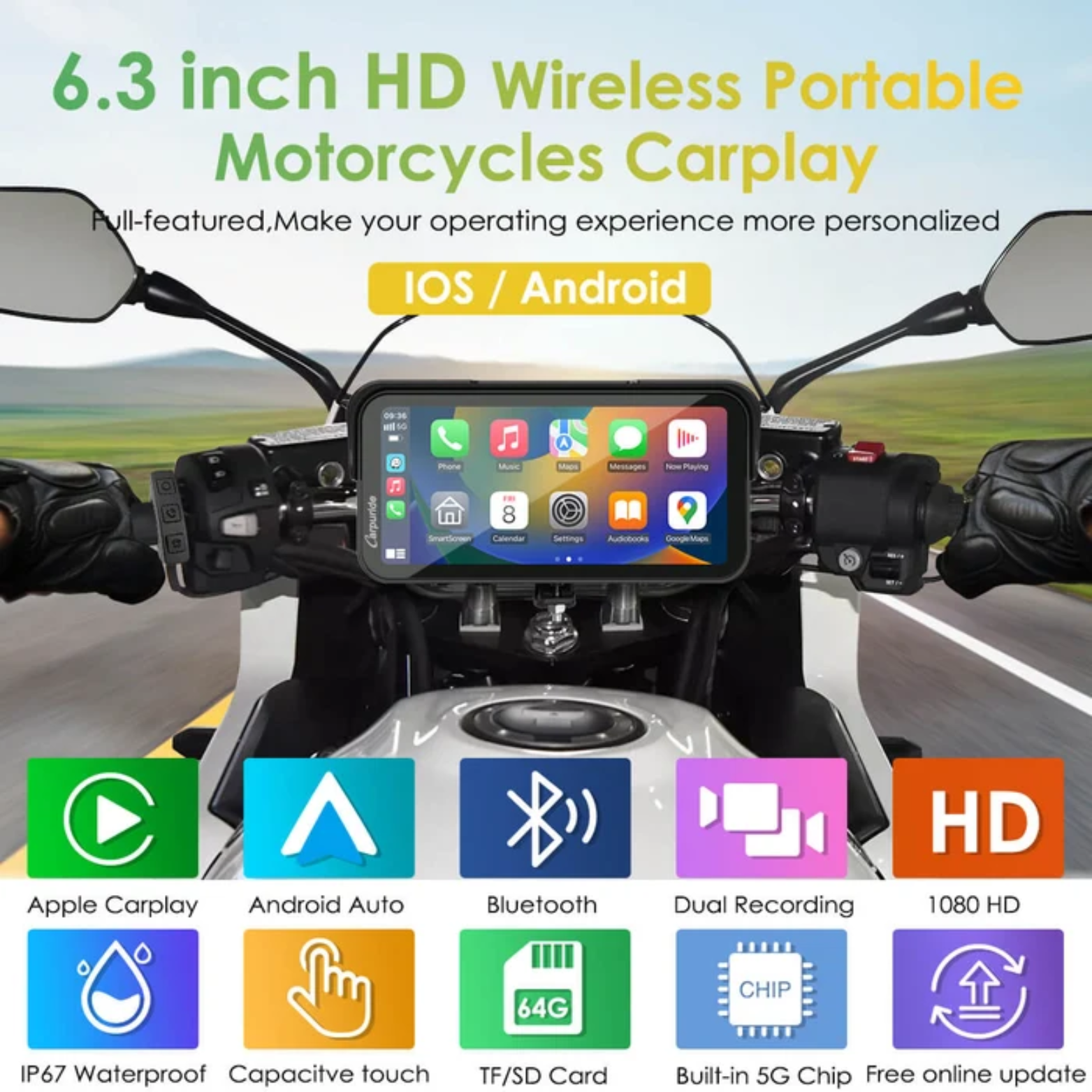

6.3-inch HD Wireless Motorcycle Stereo: This 6.3-inch wireless motorcycle stereo supports Apple CarPlay, Android Auto, Bluetooth, and includes a 1080p HD display, backup camera, IP67 waterproofing, and free online updates.

Landscape and Portrait Screen Rotation: Why rotate? Portrait mode (vertical) shows more road ahead during navigation, making it easier to see upcoming turns. Landscape mode (horizontal) is perfect for music playback and phone calls.

How it works:

• Click the "Screen Rotation" button in settings

• The device automatically restarts (takes 5-8 seconds)

• Screen rotates 90° to your preferred orientation

• Adjust camera orientation if needed
• Note: The boot logo only displays in landscape mode. When installing cameras, check the orientation on the screen first if reversed, loosen the screws and rotate the camera to the correct direction.

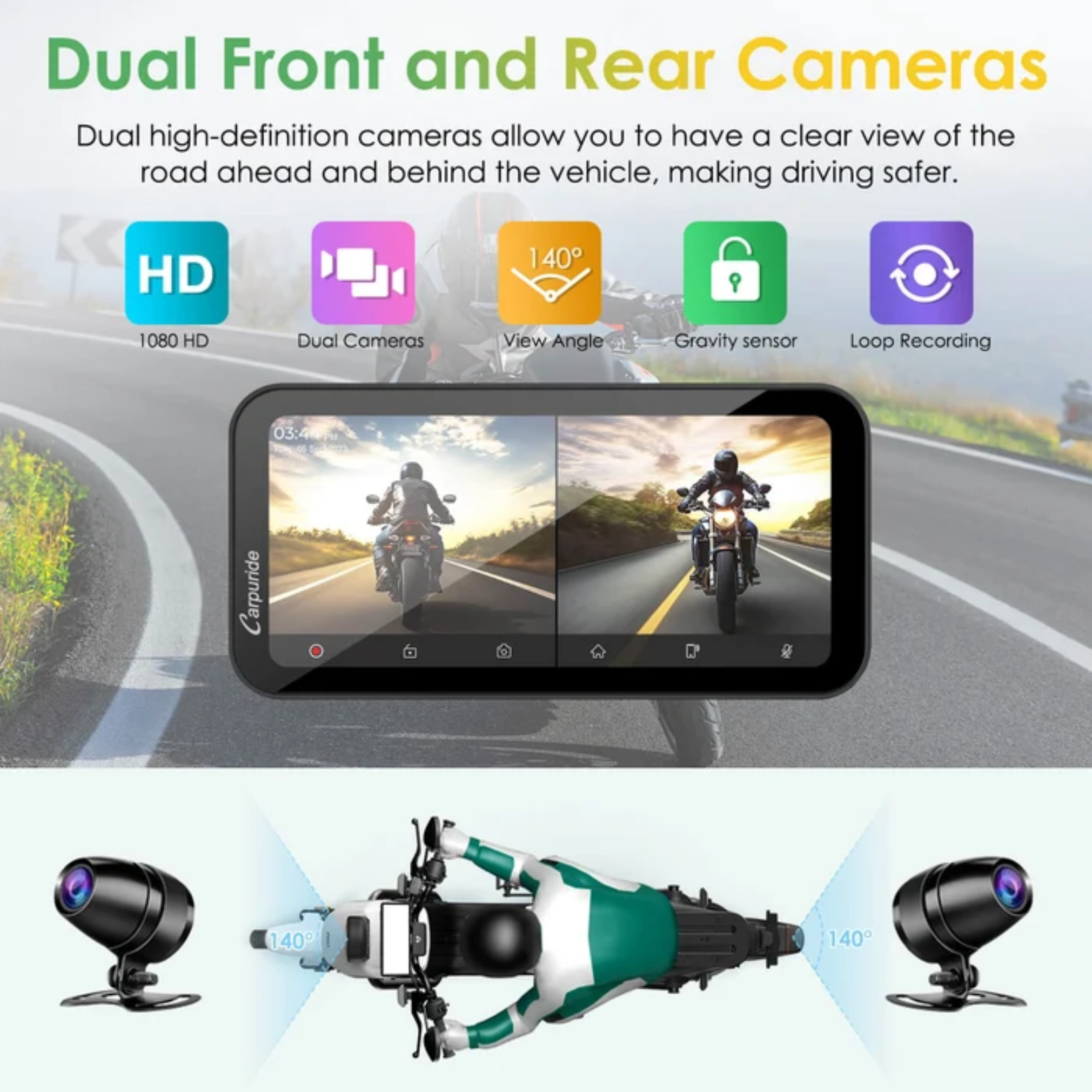

 Dual Front and Rear Dash Cam: Complete ride recording:

• Dual 1080P HD cameras: Front and rear recording at 30FPS

• 140° wide-angle view: Capture everything around you

• Split-screen DVR mode: View front and rear simultaneously

• Loop recording: 64GB TF card included - auto-deletes old footage when full

• Perfect for: Evidence collection, scenic ride memories, and safety documentation.

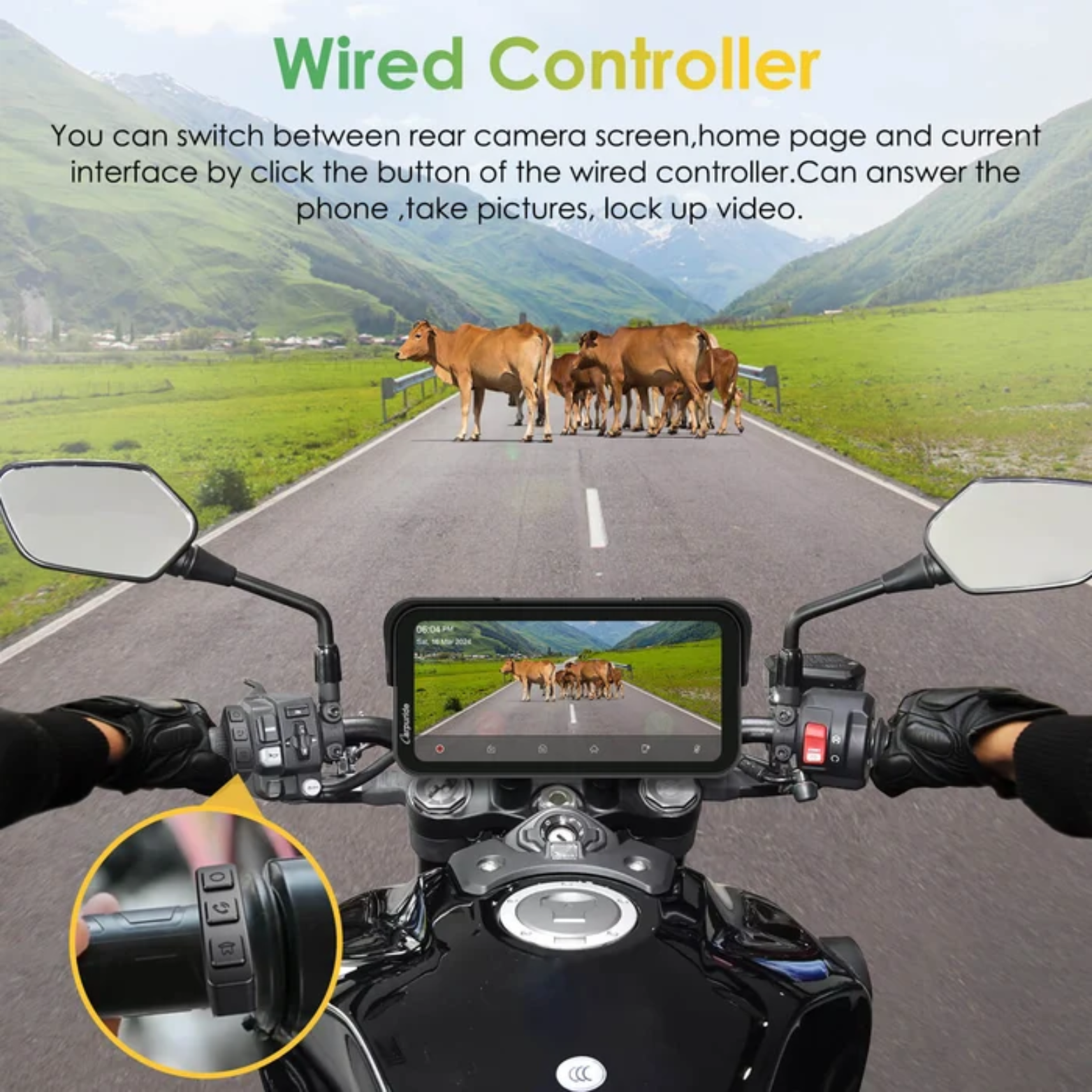

Handlebar Wired Controller: Included wired controller mounts to your handlebars for easy access:

• Cycle Button: Short press to switch between front/rear camera, long press to take a photo

• Phone Button: Short press to answer/hang up calls, long press to reject call

• Home/Lock Button: Short press to return to main interface, long press (3 seconds) to lock screen

• Safe operation: Control without taking hands off handlebars

• Note: When using an Android phone, the cycle button does not support answering incoming calls. iPhone users can answer calls normally using the wired controller.

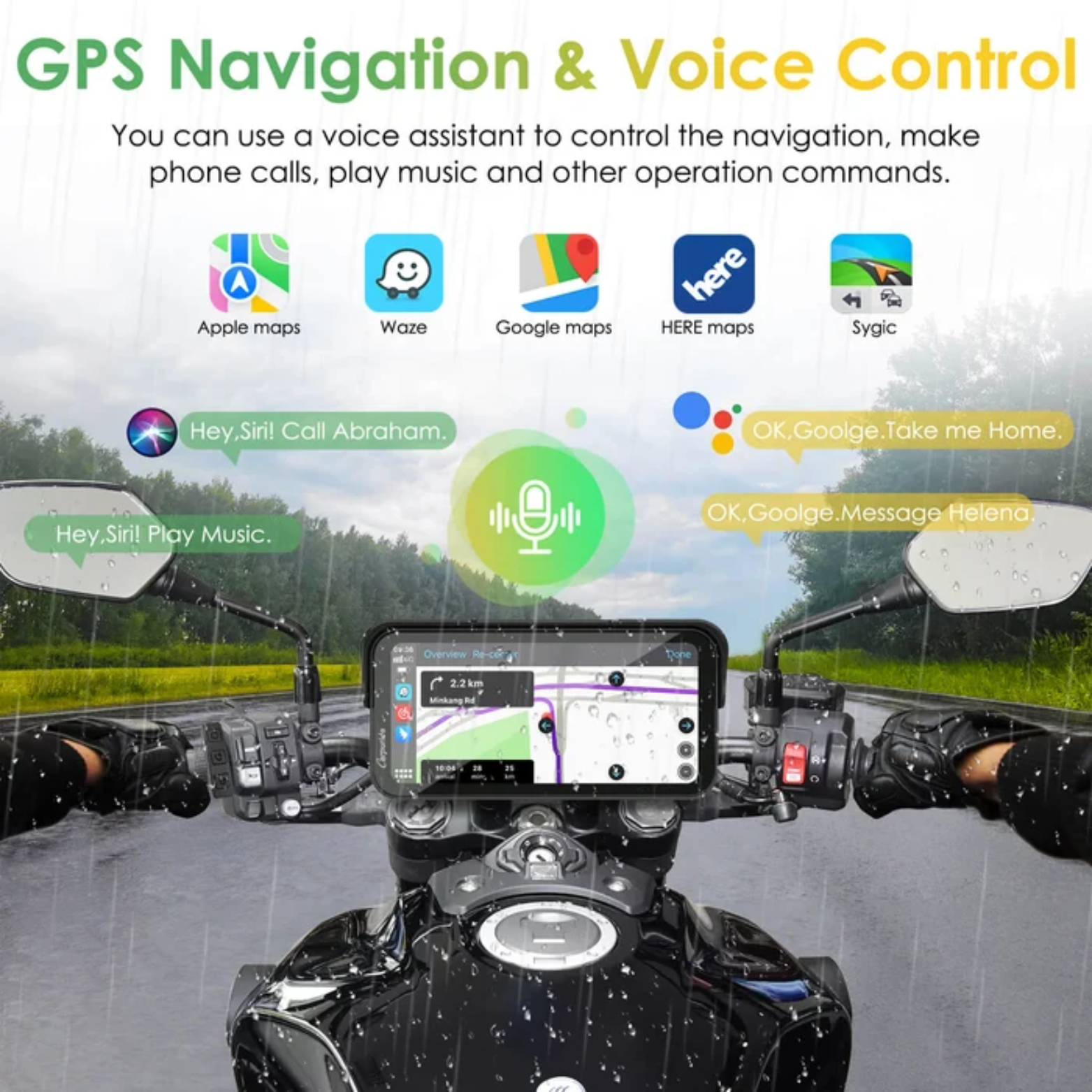

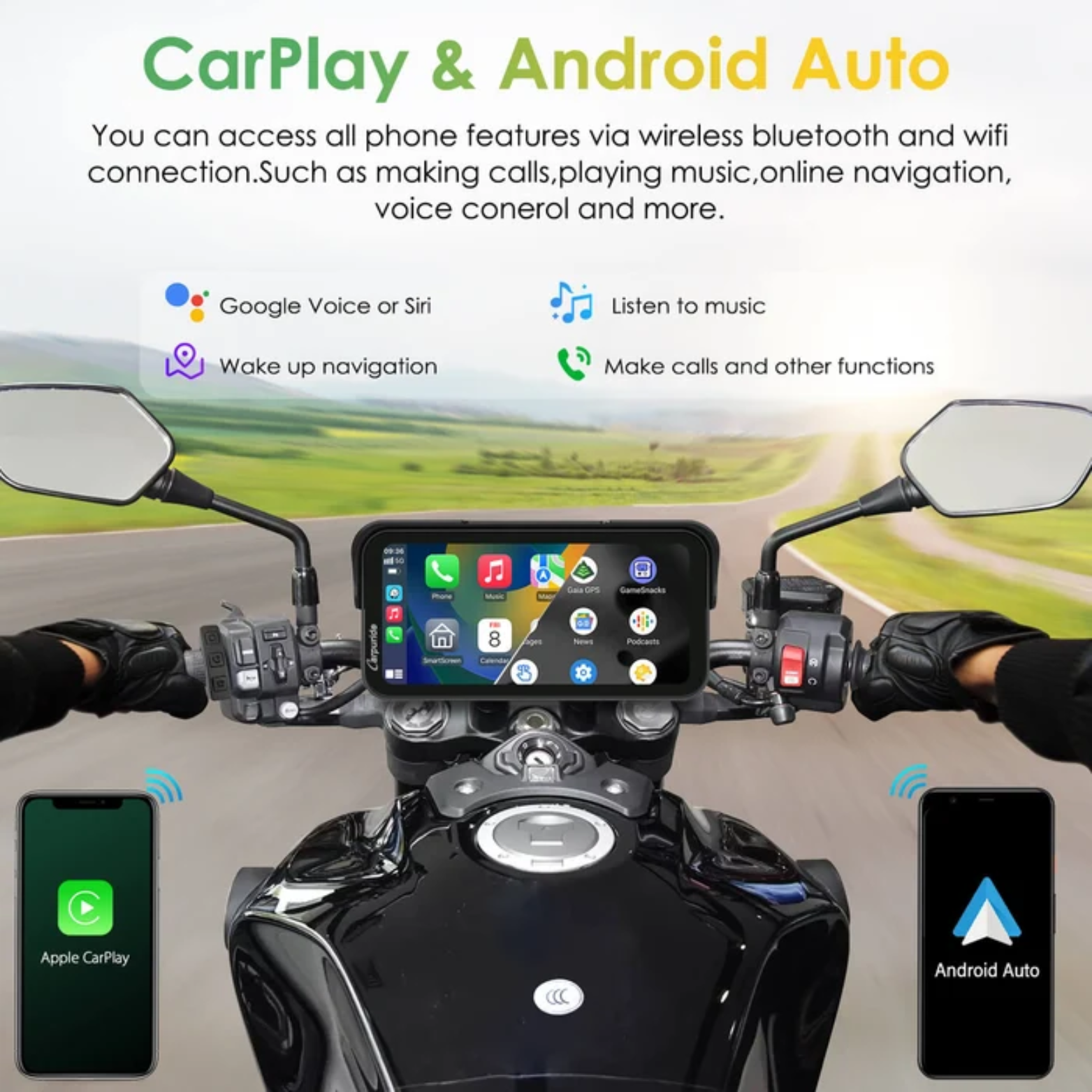

Wireless CarPlay & Android Auto: Connect your smartphone wirelessly for instant access to navigation, calls, music, and voice control. Compatible with Apple Maps, Google Maps, Waze, HERE Maps, and Sygic. Seamless connectivity for both iPhone and Android devices.

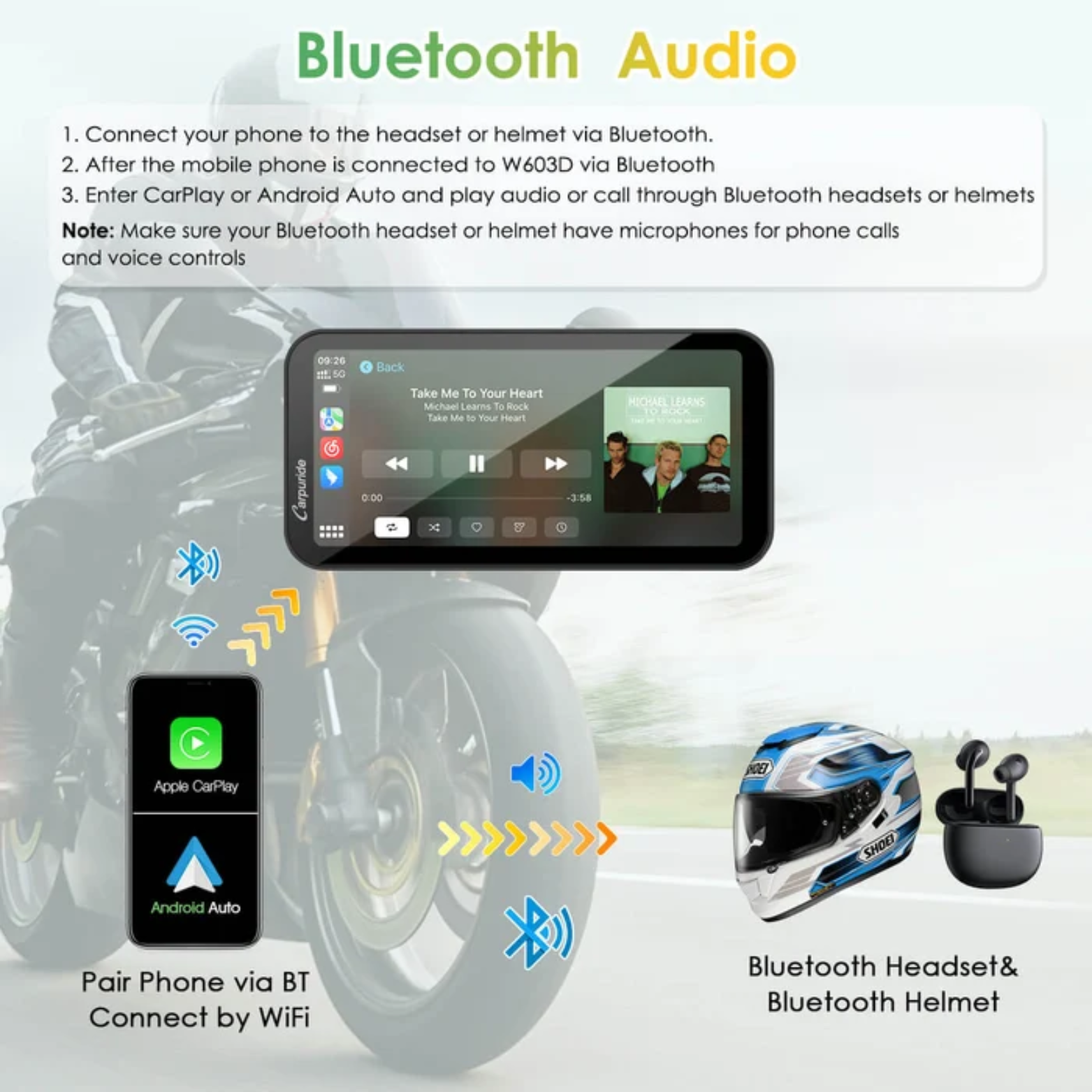

Bluetooth Audio Connection: Simple 3-step setup:

• Connect your phone to a Bluetooth helmet or headset

• Connect your phone to W603D via Bluetooth/WiFi

• Enter CarPlay or Android Auto - audio plays through your helmet

• Note: Make sure your Bluetooth headset or helmet has a microphone for phone calls and voice control.

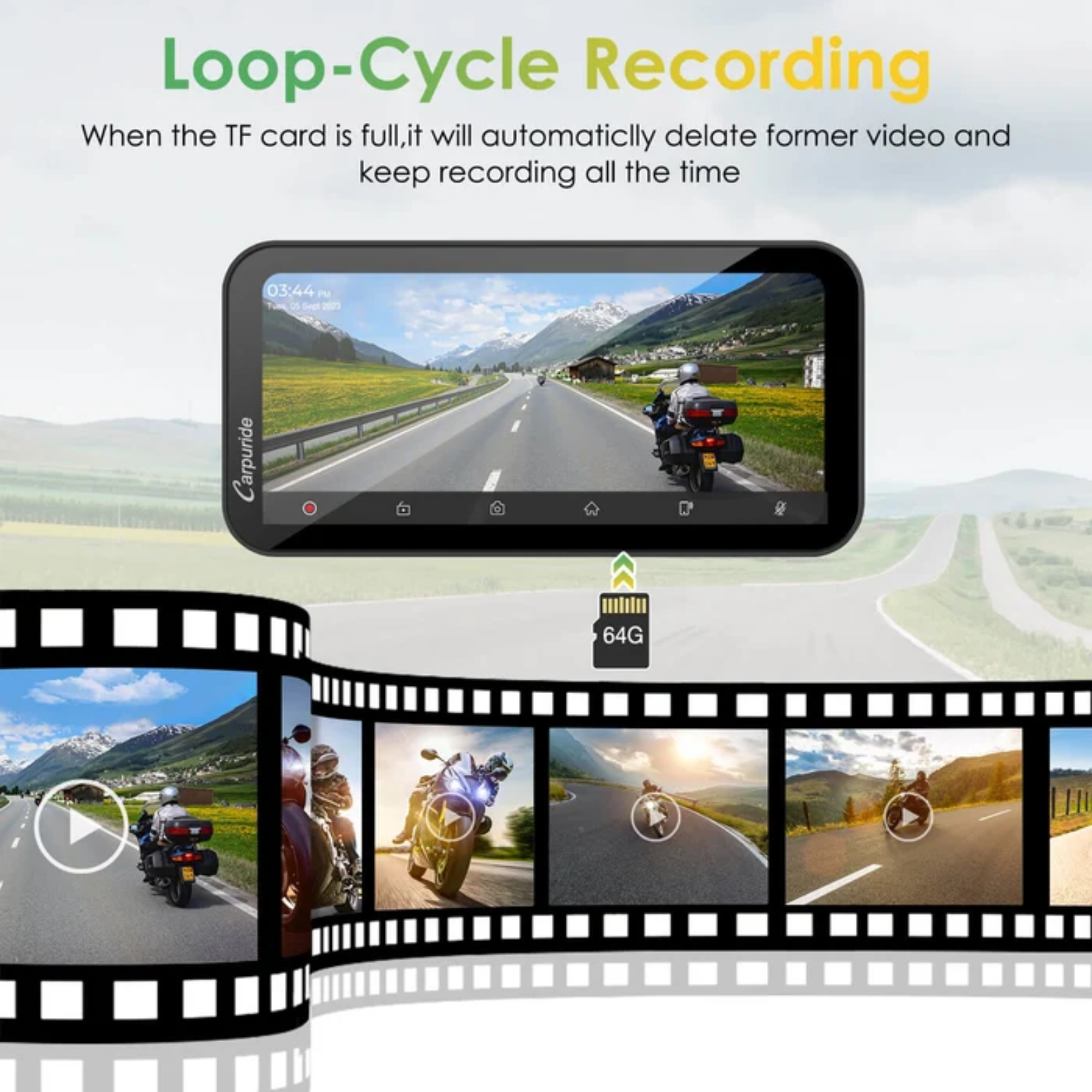

Loop-Cycle Recording: With loop recording enabled, the system automatically deletes the oldest videos when the TF card is full, ensuring continuous safety documentation of your rides. Never worry about running out of storage space.

Automatic Brightness Adjustment: Built-in light sensor automatically adjusts screen brightness based on ambient light. Ensures optimal visibility in bright sunlight and reduces glare at night. Safer riding in all lighting conditions.

All-Weather Performance:

• IP67 Waterproof Rating - Fully protected against:
• Heavy rain and water spray

• Dust and dirt

• Extreme temperatures (-20°C to 60°C)

• Vibrations and shocks

• Ride confidently in any weather condition. Your navigation and dash cam stay fully functional, rain or shine.

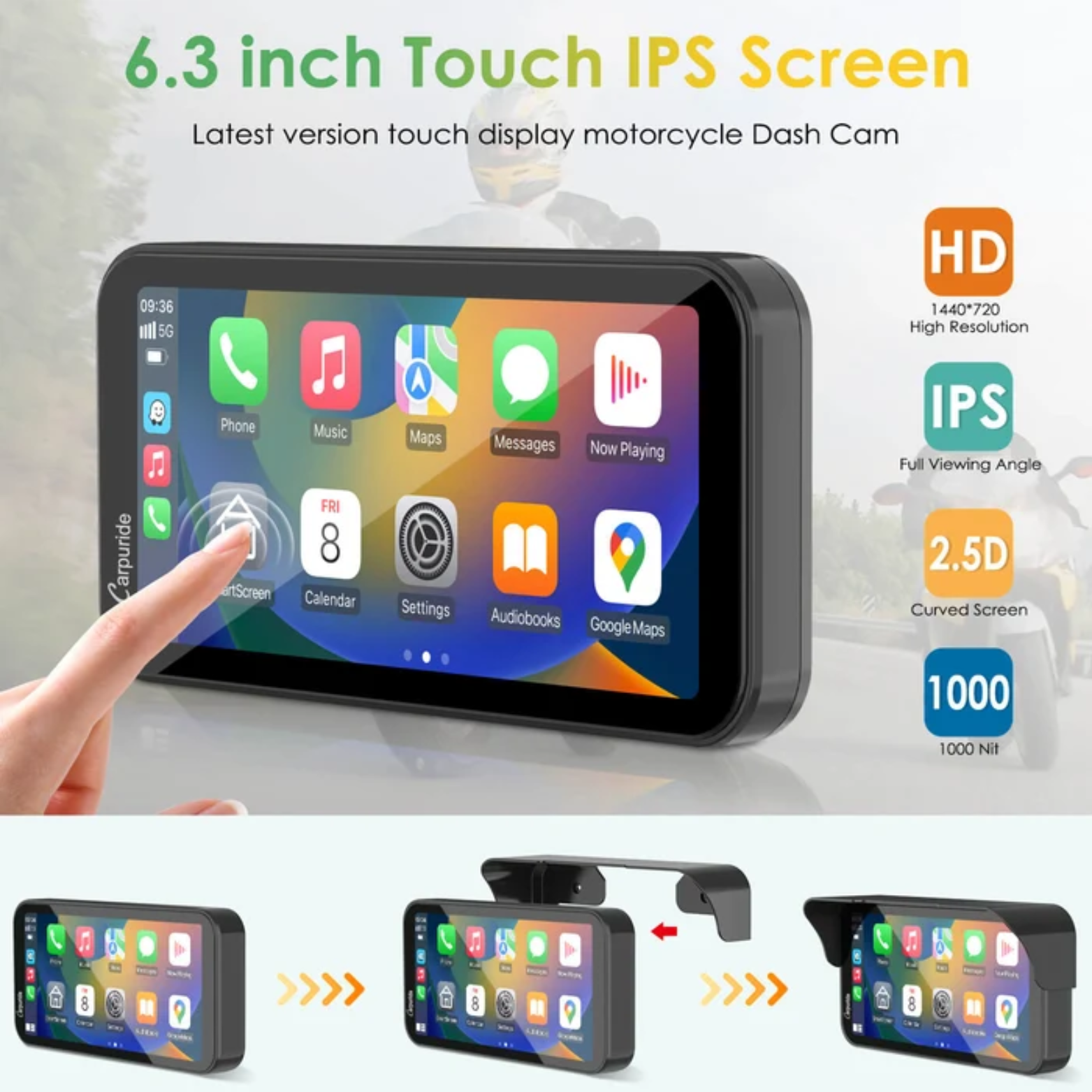

6.3-Inch Ultra-Sensitive Touch IPS Screen:

• Premium display features:
• 1440×720 HD resolution: Crystal-clear visuals

• IPS full-view technology: Perfect viewing from any angle

• 2.5D curved screen: Smooth, refined touch experience

• 1000 nits brightness: Glare-free even in direct sunlight

• Capacitive touch: Responsive even with gloves


Universal Compatibility: Works with virtually any motorcycle:

• Sport bikes, cruisers, adventure bikes

• Dirt bikes and dual-sport motorcycles

• Electric motorcycles and scooters

• Mountain bikes with motor assist

• One-time installation, hassle-free setup. Perfect for riders seeking reliable motorcycle GPS and entertainment systems.

Technical Specifications:

• Display: 6.3-inch IPS touchscreen, 2.5D curved glass, 1440×720 resolution, 1000 nits brightness (sunlight readable), 90° rotatable (landscape/portrait)

• Connectivity: Wireless CarPlay, Android Auto, Bluetooth 5.0

• Dash Cam: Dual 1080P HD cameras (front and rear), 140° wide-angle view, 30FPS recording, split-screen DVR mode

• TPMS: Optional tire pressure monitoring system with 2 wireless sensors (real-time pressure)

• Mounting: Universal ring bracket (fits most motorcycle handlebars, 360° rotation adjustment)

• Waterproof: IP67 rated (submersible up to 1 meter for 30 minutes, dust-tight)

• Audio: Bluetooth connectivity for helmet/headset integration

• Storage: 64GB TF card included for dash cam loop recording

• Power: 6.5V-30V DC (direct battery connection, 6.5V-12V/2A; over 12V/1.5A) or USB-A port (5V, 3A minimum)

• Control: Handlebar wired controller included (single click to switch screens/cameras, long press for calls/photo capture)

• Temperature Range: Operating: -20°C to 60°C (-4°F to 140°F)

• Smart Features: Auto brightness adjustment with light sensor, voice control (Siri/Google Assistant)

• Updates: TF card firmware updates

• Special Features: 90° screen rotation, dual dash cam, wired controller, auto brightness, loop recording

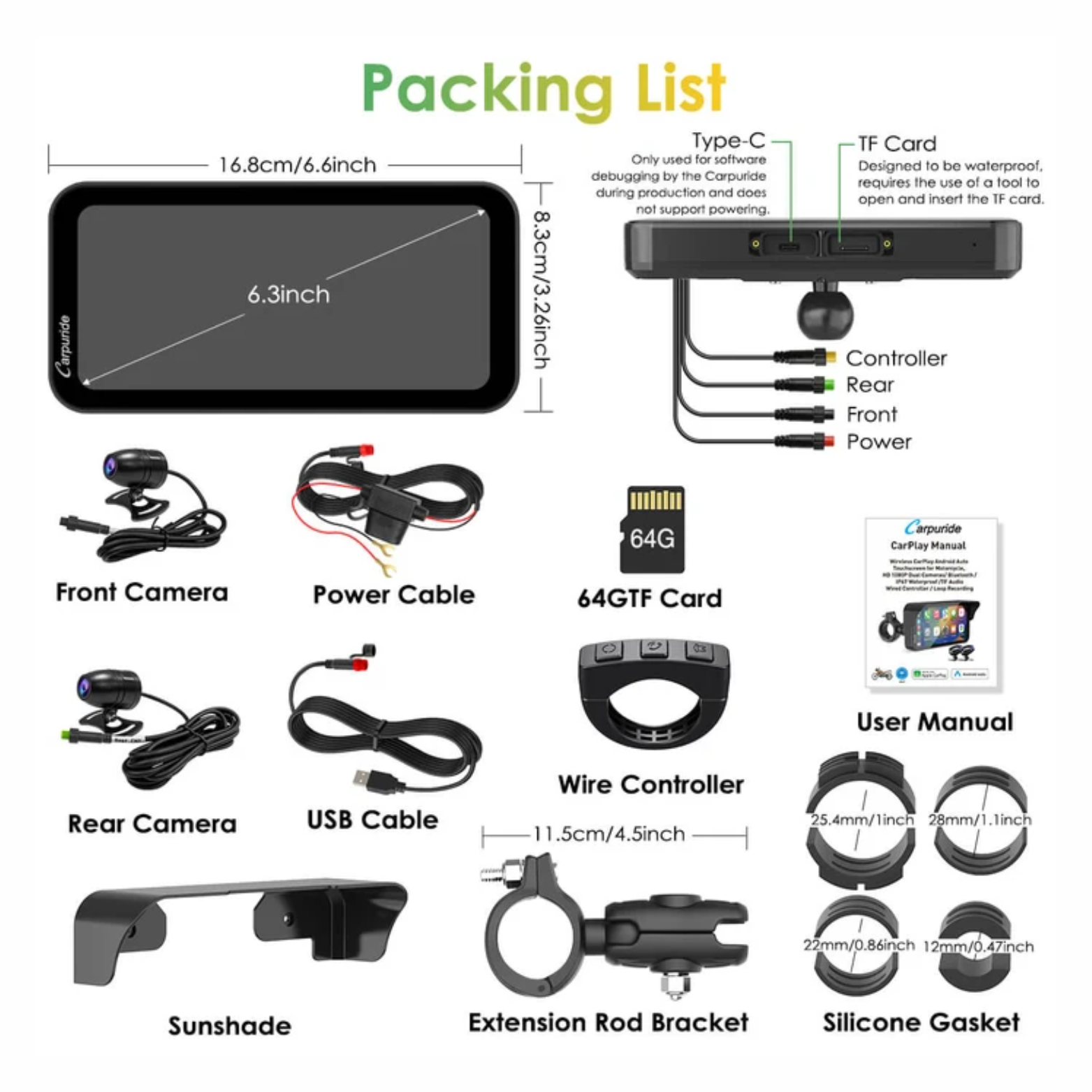

What's in the Box:

• 1x Carpuride 603D main unit

• 2x Front and Rear cameras

• 1x Wired controller

• 1x Power cable (battery connection)

• 1x USB-A cable

• 1x Ring bracket with silicone gasket

• 1x 64GB TF card

• 1x Sunshade

• Installation hardware (screws, clamps)

• User manual

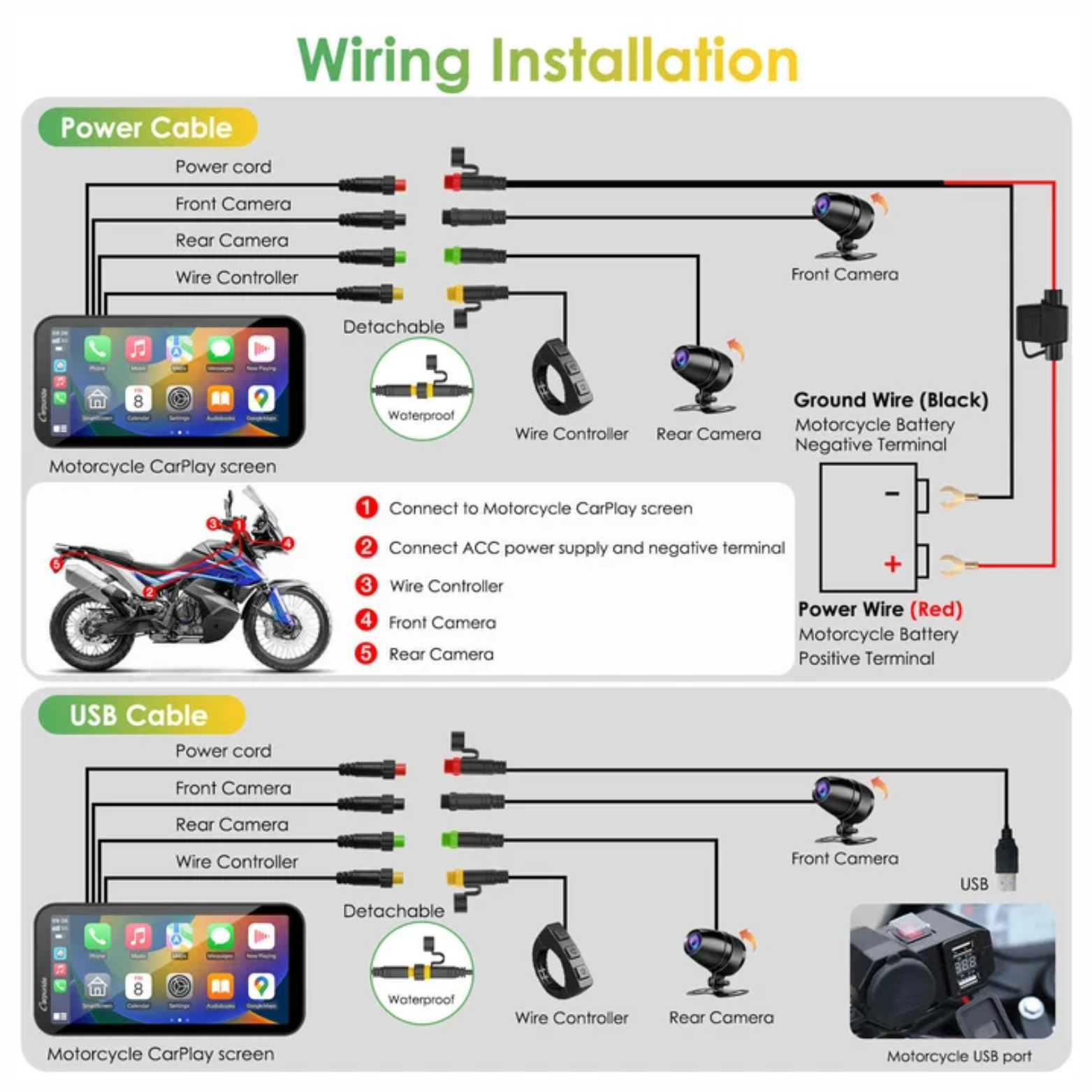

Wiring Installation Guide:

Two power options:

• Power Cable: Direct connection to motorcycle battery (6.5V-30V supported)

• USB Cable: Connect to USB port (requires 5V, 3A minimum)
  All ports (power, two cameras, wired controller) connect via color-coded cables. Follow the diagram for easy installation.

Ring Bracket Installation:

• Attach the mount to the handlebar with a Phillips screwdriver

• Clamp the connecting rod to the mount

• Insert the device and adjust the position as desired. Tighten the adjustment ring to secure (the joint ball is 360° adjustable)

• Installation is complete
