What is CDI In bikes? A Detailed Insight

In the world of motorcycles and their electrical and ignition systems, it’s essential to have a good grasp of diagnosis and repair. One essential element to understand is your bike’s CDI box (Capacitor Discharge Ignition). This is also known as the Thyristor ignition system. CDI is a common type of electronic ignition system used in various vehicles and machines, including outboard motors, motorcycles, lawnmowers, chainsaws, small engines, turbine-powered aircraft, and some cars.

It is also used in modern ignition systems along with other components such as the ignition coil, spark plug, and charging circuit. In this comprehensive guide, we will focus on CDI and its role in motorcycle engines.

A] What is CDI?

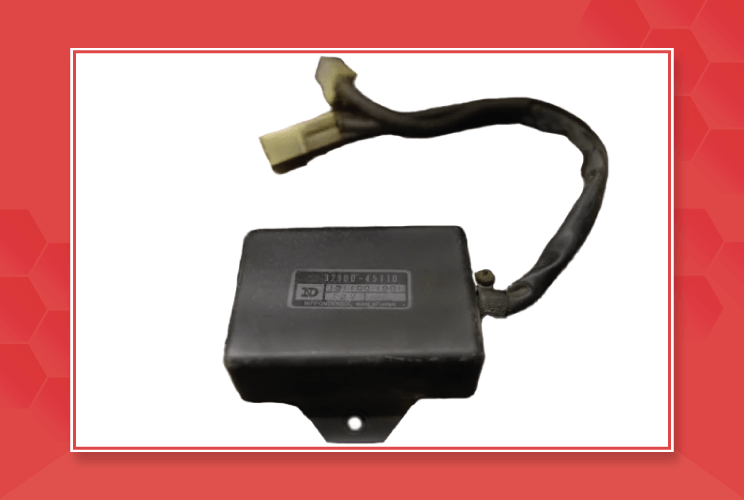

CDI systems were originally developed to overcome the long charging times associated with high inductance coils used in inductive discharge ignition (IDI) systems, making the ignition system more suitable for high engine speeds. The CDI box is also known as the Igniter box, CDI module, Powerpack, black box, pulse box and brain box.

The basic component includes a charging circuit, a triggering circuit, a main capacitor, a small transformer, and an ignition coil. The charging circuit charges a high-voltage capacitor, and at the instant of ignition, usually determined by a crank position sensor. The system stops adding power to the capacitor, so it can release its electrical charge to the ignition coil before it goes to the spark plug. The ignition coil steps up this voltage to many kilo-volts and feeds the voltage to the spark plug for creating the sparks, which finally ignites the combustion engine.

CDI has a short charging time, a fast voltage rise, and a short spark duration limited to about 50-80 µs.CDI systems are good at handling resistance, but in certain situations, the short spark duration might not light up the fuel reliably, causing issues.The Crank1 Battery For Yamaha FZ1-CB14S features 12Volt of capacity and  10.5 (10HR) of amperes with a CCA of 160.

B] How Is The CDI Unit Integrated In Modern Motorcycles?

In modern motorcycles, the CDI unit is often integrated into the ECU (Electronic Control Unit). The ECU continuously monitors sensor inputs and adjusts the ignition timing in real-time to optimize engine performance and efficiency. The ECU controls the ignition timing using the reference of the crank position sensor and the fuel injection system, which is responsible for delivering the right amount of fuel to the engine.

The integration of the CDI unit into the ECU has made modern motorcycles more efficient, reliable, and easier to maintain. Additionally, there are products like the ECU Fuel Injection Optimiser that can be used to further optimize the performance of the motorcycle’s engine.

C] How Does The CDI Unit In Bike Work

CDI unit receives a pulse of voltage from the motorcycle battery, which passes through the unit to fire up the spark plug. The unit has a trigger mechanism, coils, and a box with capacitors and other circuitry inside. The trigger tells the box when to fire which coil with the capacitors, and the spark plug ignites the air/fuel mixture in the engine.

The motorcycle CDI unit charges a storage capacitor to a high voltage by the flywheel charging coil, and at the proper moment, it rapidly sends this charge into the primary winding of the ignition coil, which acts like a step-up pulse-transformer. The secondary output is a short, very high-amplitude pulse that fires the spark plug.

The motorbike CDI unit can advance or retard ignition timing based on engine demand. Modern bikes have a 2D or 3D map programmed into the CDI unit, which adjusts ignition timing against RPM. By rotating the stator plate left and right, you can change the trigger point of the CDI, thus advancing or retarding your timing, respectively. The timing here is crucial. Timing control is important because it ensures that the spark occurs when the piston is close to the top of the compression stroke, allowing the compressed air/fuel mixture to burn properly and the expanding gases to force the piston down the cylinder.

D] What Are The Types Of CDI In Bike?

CDI systems in motorcycles can be split into types based on their technology and design. Here are the types of CDI in bikes:

• Analog CDI: Analog CDI is an old-fashioned engine ignition system. It uses simple parts like capacitors and triggers to make sparks in your car or other machines. Newer digital CDI systems are more advanced and precise, but analog CDI is still reliable for older engines.
• AC-CDI and DC-CDI: The AC-CDI gets its power solely from the alternator in the form of alternating current. The DCI is slightly larger than the AC-CDI ignition system and it operates on direct current and is powered by a battery. It enables precise ignition timing and is suitable for high-performance applications. However, it can be more complex and expensive than AC-CDI systems.
• Digital CDI: It uses digital circuitry to control the ignition and combustion process of the engine. Digital CDI has the capacity capacity to advance or retard ignition timing based on engine demand. It is precise and efficient but can be expensive and commonly used in high-performance applications where maximum power output is desired.
• Programmable CDI: The programmable CDI allows the user to program the ignition timing and other variables related to the spark. The system can be configured with software to adjust the ignition map, ignition voltage, the polarity of the pulse generator switching edge, sensor type, and parameters as well as the side stand monitoring.
• Performance CDI: As the name suggests, this CDI is designed to improve the performance of the engine by increasing the spark energy and improving the ignition timing. The process is simple and you can start seeing the results immediately.

E] Advantages Of CDI System In Bikes

• Precise ignition timing control: CDI systems have the capacity to advance or retard ignition timing based on engine demand. This ensures that the spark occurs when the piston is close to the top of the compression stroke, allowing the compressed air/fuel mixture to burn properly and the expanding gases to force the piston down the cylinder.
• Reliability: CDI systems provide a reliable ignition spark, which is essential for starting the engine and keeping it running smoothly. Compared to inductive systems, CDI systems have a shorter charging time, which means that the spark is generated faster.
• Reduced maintenance: CDI systems are low-maintenance and require little extra adjustments. They have no moving parts, which means that they are less likely to wear out over time.
• Enhanced performance: CDI systems can increase power and efficiency by improving the ignition timing and spark energy.
• Improved fuel efficiency: CDI systems can improve fuel efficiency by providing a more efficient combustion process. This results in better fuel economy and reduced emissions.
• Compliance with emissions regulations: CDI systems can help motorcycle manufacturers comply with emissions regulations by providing a more efficient combustion process and reducing emissions.
• Short transient response: CDI systems have a short transient response for the capacitor discharge ignition system. This ensures that the spark duration is shorter and the voltage rise is faster, resulting in better engine performance.

F] Troubleshooting Common CDI Issues

CDI systems are a popular choice for motorcycle riders due to their reliability, efficiency, and low maintenance. However, like any other electronic system, CDI systems can develop issues that can affect their performance. Here are some common CDI issues and tips for troubleshooting them:

• No spark: If you’re getting no spark, check the kill switch to make sure it’s in the “on” position. Next, check the ignition coil to make sure it’s properly connected to the CDI box and the spark plugs. If the ignition coil is properly connected, use a CDI tester to test the CDI box.
• Intermittent or weak spark: If you’re getting an intermittent or weak spark, check the spark plugs to make sure they’re clean and in good condition. If the spark plugs are in good condition, use a CDI tester to test the CDI box.
• Noisy engine or bike sparks: If your engine is noisy or your bike is sparking, check the ignition timing to make sure it’s correct. If the ignition timing is correct, check the CDI box.
• Engine stalling: If your engine is stalling, check the fuel system to make sure it’s not clogged or dirty. If the fuel system is clean, check the CDI box for issues using a CDI tester.

If still it’s not working, it would mean that the CDI box is at fault, and it will need to be replaced.

To troubleshoot CDI issues, it is essential to consult a professional motorcycle mechanic or technician as different models may have unique CDI systems and requirements. One way to improve the performance of CDI systems is by using high-quality spark plugs like the NGK Iridium Spark Plug. These spark plugs are designed to provide a more efficient combustion process, resulting in better fuel economy and reduced emissions.

Further Reading: When To Change Bike Tyres? 13 Signs To Do It Today!

G] Evolution Of Motor Cycles

From early models that were little more than bicycles with engines to the high-performance and fuel-efficient machines we see today. CDI systems have played a significant role in this advancement, contributing to the development of more reliable, efficient, and powerful motorcycle engines. To make the riding journey more smooth, carrying a bike riding gear full set is important.

Here are few examples:

• Improved ignition timing control: CDI systems have allowed for more precise ignition timing control, which has resulted in better engine performance and fuel efficiency. This has been achieved by using electronic circuits to control the ignition timing, which is more accurate than the mechanical systems used in the past.
• Increased power and efficiency: CDI systems have increased power and efficiency by improving the ignition timing and spark energy. This has resulted in better fuel economy and reduced emissions.
• Reduced maintenance: CDI systems are low-maintenance and require little extra adjustments. They have no moving parts, which means that they are less likely to wear out over time.

Conclusion

In a nutshell, CDI systems work by storing electrical energy in a capacitor and then releasing it in a powerful burst to create a spark at the spark plug. This spark ignites the air-fuel mixture in your engine, setting off a controlled explosion that propels your bike forward. Without a well-functioning CDI system, your motorcycle would simply refuse to start or run properly. So, the next time you go for a ride and twist that throttle, you’ll know how important your CDI system is.
